Simplex 2015 Series
2015 Series
Exit Device Controls

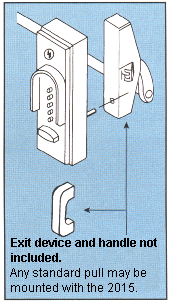

This exit device control is designed to operate surface-mounted exit devices from the outside. Replaces key cylinders on new or existing exit devices.
- Weather-resistant; all-mechanical construction, ideal for use outdoors.
- Lock comes with a 2 3/4" (70 mm) long tailpiece* to operate surface-mounted exit devices from the outside.
- Exit device can have up to 90Ý rotation (either direction).
- Series 2015 should not be used with thumb operated, mortise design, or vertical rod devices.
- Exit device can be "dogged" open without affecting the 2015 unit.
* longer tailpieces available on request.
2015 Series lock can be used with many leading brands of surface-mounted exit devices including but not limited to the following:
Corbin
26NT, 29-1/4, 29NTM2, 29M2, 291/2M2, 27K, 21, 22, 25, 29D20, La29, 39, 39EL, 39LLD, LA39, 39O
Russwin
365, LT365, 3651/4, 370, 372, 375, LT375, 377, 382, 384, 385, 388, LA372, 572, 572EL, 572ELD, U572, LA572
Sargent
9898E, 9898K, 2813, 2804, 9804RHRB, 6804, 12-6804, 12-9804(LHRB)
Adams Rite, Rim
8800, 8700, 3700
American Device
6300 Series 6303
Yale
1500 Series, 7000 Series
Monarch
XXRP, FXXRP, 18RP, F18RP, 18VP, F18VP, FXXRBA, XXRBA, 18RBA, FXXVP, F18RBA, XXVP
Detex
LA 50190, ST, S2, R1, R2, (Outswing Positions), S1, S2, (Inswing Positions)
Precision Hardware
810-H (RHRB only), R103 (RH or LH), H-203 (RH or LH), D203 (RH or LH), H1203 (RH or LH), D1203 (RH or LH), 1103 (RH or LH), FL-D103
Magno Krom
500-4 (LHR only), 550-4 (LHR), 650-4 (LHR), 1500-4 (LHR), 1550-4 (LHR), 1650-4 (LHR), 600-3 (RHR)
Von Duprin
22 Rim, 2227, 22 Rim-F, 2227-F, 88 Rim, 88 Rim-F, 98 Rim, 9827, 9847, 98 Rim-F, 9827-F, 9847-F, 99 Rim, 99 Rim-f, 9927-F, 9947-F
Specifications
Construction:
All-metal front housing.
Door thickness:
1 3/8" to 2 1/2" (33 mm to 64 mm)
Strike:
Not included.
Latch:
Not included.
Installation:
Minimum stile required: 3 1/8" (79 mm)
Control:
Includes 6-pin tumbler cylinder keys for combination change; keyed differently. May be keyed alike or master keyed on special order. Combination change.
Reversibility:
For non-handed or clockwise-rotating hubs only.
Weight:
5 lbs. (2.3 kg)

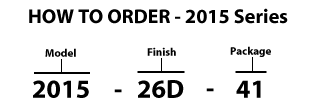

Model:
2015 - Exterior access by combination. Interior egress by exit device (not supplies).
 |
Finish 26D - Satin Chrome Package 41 - 1 lock per box |
