Simplex 2400-2500 Series
2400 and 2500 Series
Switch Controls
These remote station shunt lock switches control electric strikes, alarm systems, elevators, garage doors, etc.
Model 2450 features an adjustable time delay (2 to 60 seconds) with a temperature range of 15° to 120°F (-9° to 49°C), and also includes a 3 1/4" x 9 5/8" (83 mm to 244mm) dress plate.
Specifications
Construction:
Stainless steel face plates.
Electrical rating:
28VDC, 2 amp inductive, 6 amp resistive (5 amp-125 VAC-60Hz). Model 2450: 10 amp 125-250VAC/28VDC.
Wall thickness:
3" to 11" (76 to 279 mm).
Strike:
Not included.
Latch:
Not included.
Installation:
In-wall mounted with two draw bolts. 3 gang plate requires: 2 1/4"W x 5 1/8" x 2" D (57 mm x 130 mm x 51 mm) slot. Narrow plate requires: 1 1/8"W x 6 1/8"L x 2" D (29 mm x 156 mm x 51 mm) slot.
Control:
Use allen wrench to change combination (switch must be removed from wall).
Weight:
3 lbs. (1.4 kg)

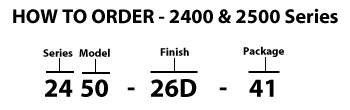

Series:
24 - Standard
25 - Includes two LEDs, tamper switch and spy shield
Models:
10 - Momentary contact SPDT; 3 gang plate
20 - Momentary contact SPDT; Narrow plate
30 - Maintained contact DPDT; 3 gang plate
40 - Maintained contact DPDT; Narrow plate
50 - Adjustable time delay with through bolt mounting

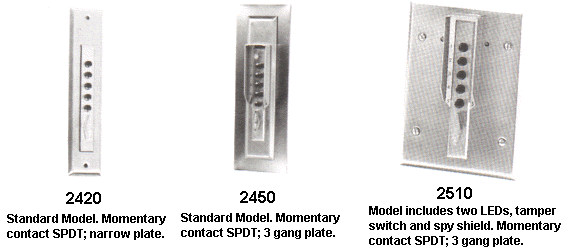

Pictured models:
 |
Finish 26D - Satin Chrome Package 41 - 1 lock per box |
