Simplex 3000 Series
3000 Series
Narrow Stile Door Locks
The heavy-duty fully mechanical 3000 Series offers slim-line access control for narrow stile aluminum and glass entrance doors. The lock has a control key that deactivates and activates the combination. Used as a day/night control, this key can prevent unauthorized re-entry after hours via the combination. The control key can also activate a latch holdback feature to allow free access during business hours.
Designed for use with Adams Rite #4510/4710 latch mechanisms and with most Adams Rite egress hardware. Any standard mortise cylinder that operates the Adams Rite latch will function with a 3000 Series lock.
Note: Adams Rite key cylinders, latches, and egress hardware are not provided with lock.
Your must order a drive assembly specifically for the hand of your door. To determine the hand of your door, look at the door in its closed position from the exterior (pushbutton side). When specifying the handing of UNICAN locks, LHRB = LH and RHRB = RH.
Sample day/night control
7:30 AM
Management gains access with control key; activates code use for employee access.
7:30 to 11:59 AM
Employee gain access by using correct code. Management's control key can override the combination lock at any time.
12:00 NOON
Management activates latch holdback.
12:01 to 12:59 PM
Employees gain free access (no need to enter code).
1:00 PM
Management deactivates latch holdback.
1:01 TO 5:00 PM
Employees gain access by using correct code. Management's control key can override combination at any time.
5:05 PM
Management deactivates code with control key.
5:06 PM to 7:30 AM
Door will not open, even if correct code is entered. Only the control key can gain access.
Specifications
Construction:
All metal front housing with fixed thumbturn.
Door thickness:
Up to 1 3/4" (44 mm).
Strike:
Not included.
Latch:
Not included.
Installation:
Minimum stile required: 1 7/8" (48 mm).
Control:
Includes DF59 Keys for combination change.
Weight:
Housing and drive assembly: 4 lbs. (1.8 kg)

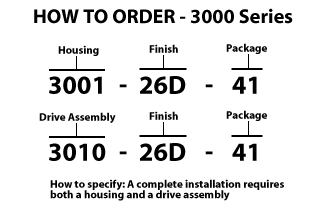

Housing:
3001 - Standard housing
3002 - Standard housing plus cylinder guard
Drive assembly:
3010 - 31/32" (25 mm) backset - RH/RHRB
3020 - 31/32" (25 mm) backset - LH/LHRB
3030 - 1 1/8" (29 mm) backset - RH/RHRB
3040 - 1 1/8" (29 mm) backset - LH/LHRB
 |
Finish 26D - Satin Chrome 55 - Duranodic Dark Bronze Package 41 - 1 lock per box |
