Simplex 7000 Series
7000 Series
Auxiliary Locks
The 7000 Series Pushbutton Access Control from ILCO UNICAN provides convenient auxiliary lock protection for commercial and residential applications.
Compact, stylish, and secure, the 7000 Series operates only when the correct buttons are pushed in the proper sequence and the turn knob is rotated to retract the deadbolt or latch.
Features
- Rugged weather-resistant all-metal construction.
- Fully mechanical - not affected by power failures.
- Clutch-protected turn knob cannot be forced.
- No keyway to be picked.
- Large easy-to-depress pushbuttons.
- One-hand operation.
- Deadbolt models available with 2 3/8" (60 mm) and 2 3/4" (70 mm) backsets.
- Exterior trim plate covers 2 1/8" (54 mm) bores.
- 1" (25 mm) deadbolt models have a saw resistant hardened steel insert.
- Mounts above existing lockset or can be used alone.
- For interior or exterior use.
Models 7002, 7008
- 1" (25 mm) Tubular deadbolt.
- Saw-resistant hardened steel insert.
- Must be manually relocked.
- Ideal for front and rear residential/commercial doors, garden cabanas, storage rooms, etc.
- Model 7002: 2 3/4" (70 mm) backset.
- Model 7008: 2 3/8" (60 mm) backset.
- Includes "380" TS strike.
Model 7004
- 1/2" (13 mm) Deadlocking Latch.
- Automatically relocks each time door closes.
- Perfect for storage areas, offices, employee washrooms, etc.
- 2 3/4" (70 mm) backset.
- Includes "US" strike.
Model 7006 Centurion Rim
- 5/8" (16 mm) Deadlocking Rim Latch.
- Automatically relocks each time door closes, unless latch holdback is activated.
- Use as a night latch.
- 2 3/8" (60 mm) backset.
- Includes a box strike for inswing doors and a strike plate for outswing doors.
Specifications
Exterior Trim plate covers 2 1/8" (54 mm) bores.
Construction:
Cast front housing; All-metal construction with force-proof turn knob.
Door thickness:
1 3/8" to 2 1/4" (35 mm to 57 mm).
Latch:
See descriptions of individual models.
Strike:
Models 7002 and 7008 include a strike plate. Model 7004 includes a curved lip strike plate. Model 7006 includes a box strike for inswing wood doors and a flat strike plate for outswing wood doors.
Installation:
Through bore for housing: 1 3/8" (35 mm) dia. Cross bore for latch (except 7006): 1" (25 mm) dia. Through bore for combination change sleeve 3/4" (19 mm) dia. Minimum stile required: 4" (102 mm).
Control:
Use a standard Phillips screwdriver to change combination. Combination can only be changed from the inside.
Reversibility:
Latch and hand are field reversible.
Weight:
2 1/2" lbs. (1.1Kg)

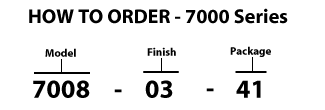

Model:
7002 - Tubular deadbolt, 1" (25 mm) throw, manual relock, 2 3/4" (70 mm) backset
7004 - Deadlocking latch, 1/2" (13 mm) throw, automatic relock, 2 3/4" (70 mm) backset
7006 - Rim deadlocking latch for wood doors only, 5/8" (16 mm) throw, automatic relock, latch holdback, 2 3/8" (60 mm) backset
7008 - Tubular deadbolt, 1" (25 mm) throw, manual relock, 2 3/8" (60 mm) backset
 |
Finishes 03 - "Chiara" Bright Brass (not available for 7006) 19 - Black Paint (7006 only) 26 - Satin Chrome Powder paint finishes available for models 7002 and 7008 in U.S.A. only: AC - Antique Copper GV - Gold Vein AW - Antique White SV - Silver Vein Package 41 - 1 lock per box 51 - 1 lock per blister pack (not available for 7006) |
