Simplex 9600 Series

Cabinet locks use the same proven combination system as our other pushbutton access controls, and are designed specifically for cabinet doors, desk drawers and similar applications. Cabinet locks are ideal for use in many places including medicine chests, liquor cabinets, gun boxes, courier pick-up boxes, home entertainment units, cleaning supply cabinets, tool chests, private files, display cases, supply cabinets, audio-visual cabinets, petty cash drawers, etc.

You can install these locks in a horizontal or vertical position, and models are available for wood or sheet metal applications.

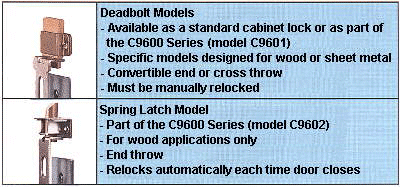

The C9600 Series has been specifically developed for stand-alone use on wood cabinet doors. The attractive, easy-grip hexagon knob functions as a "pull" to open the door - no other hardware is needed. The C9600 Series is available in deadbolt and spring-latch models.




Models available:

• Horizontal or vertical. With trim plate: 5 1/2" x 1" (140 mm x 25 mm) slot.
• Without trim plate: requires two-step mortise installation using router.

For standard sheet metal applications:

• Horizontal or vertical. Requires punched slots or series of drilled holes.

Weight:
1 lbs. (0.5 kg)

Model:

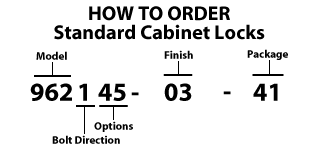

1. Standard Cabinet Locks:
962 - Wood
966 - Sheet Metal

Bolt Direction:
1 - Cross throw
2 - End throw

Options:
4 - Hexagon-shaped knob
5 - Black mounting trim plate (for wood only)

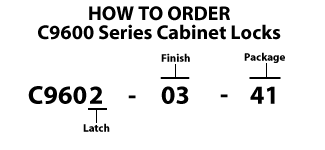

2. C9600 Cabinet Locks (for wood only)
Latch:
1 - Convertible throw bolt
2 - End throw spring latch

Finishes 03 - "Chiara" Bright Brass 04 - Satin Brass (not available for model 929) 26D - Satin Chrome Package 41 - 1 lock per box
