Simplex L1000 Series
Heavy-duty Primary Locksets
Same as the 1000 Series, PLUS lever-activated handles.
This lock complies with ADA (Americans with Disabilities Act) standards.
The L1000 Series includes privacy function model L1071. A button on the inside lever allows you to lock yourself in a room. Even if someone enters the combination from the outside, the door remains locked until you push down on the inside lever. The L1000 Series complies with paragraph 36A of the Industrial Security Manual, published by the US Department of Defense.
* Key override models will accept most manufacturer's removable-core cylinders: ASSA, Best/Falcon/Arrow/Eagle/KSP/Lloyd Matheson, Corbin/Russwin, Schlage (including Primus for L1000 only), Medeco/Yale, and Sargent.
Specifications
Construction:
Heavy-duty cylindrical lock housing conforms to ANSI 156.2 Grade 1. Cast front housing; Fixed lever. Brass unified trim plate; cast or wrought brass levers.
Door thickness:
1 3/8" to 2 1/4" (35 to 57 mm)
Strike:
Includes "TS" strike plate 201288-*-01, "DB" strike box 55068-000-01, and ASA roller strike 201821-*-01.
Latch:
5/8" (16 mm) throw latch carries a 3-hour UL/ULC fire rating for "A" labeled doors. 2 3/4" (70 mm) backset. Floating front.
Installation:
Cross bore for housing: 2 1/8" (54 mm) dia. Through bore for latch: 1" (25 mm) dia. Installation wrench 201278-018-01 included. Minimum stile required: 5" (127 mm)
Control:
Includes two DF59 keys for combination change; and two DF5 keys for models 1031, 1041.
Reversibility:
Factory handed; cannot be changed in the field.
Weight:
8 1/4 lbs. (3.7 kg)

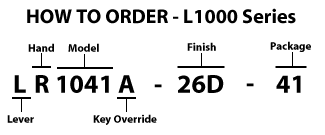

Models available:
 | |
Finishes 03 - "Chiara" Bright Brass 05 - Antique Brass 26D - Satin Chrome Package 41 - 1 lock per box Hand L - Left Hand R - Right Hand |
Key Override options* A - Assa B - Best/Falcon/Arrow/Eagle/KSP/Lloyd Matheson C - Corbin/Russwin DL - Dominion Lock S - Schlage (including Primus for L1000 only) M - Medeco**/Yale **(Request knob spacer for 5-pin Medeco cores.) R - Sargent *core not supplied with models 1021 & 1041 |
